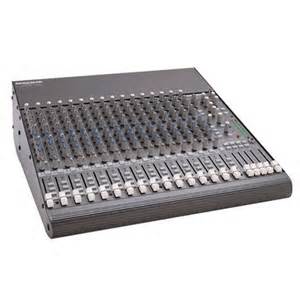

Mackie 1604-VLZ3 16-Channel Mixer

16 studio-grade XDR2™ Extended Dynamic Range mic preamps with:
– Ultra-wide 60dB gain range
– 130dB dynamic range
– +22dBu line input handling
– Extended low frequency response
– Distortion under 0.0007% (20Hz – 20kHz)
– Phantom power for studio condenser mics
16 high-headroom line inputs, 16 channel inserts
Advanced DC pulse transformer RF rejection
60mm long-wearing logarithmic-taper faders
4 Aux sends, level, pan, -20dB/Solo and Overload/Mute_LEDs on each channel
4 stereo Aux returns, 8 Direct outs, 4 Group/Bus outputs
3-band Active EQ with sweepable midrange
18dB/oct. 75Hz Lo-Cut filter
Control Room/Phones multi-input source matrix
Balanced 1/4″ inputs and outputs (except inserts)
Rack-mountable design with three physical configurations via rotating I/O pod
